Butyl mats are revolutionizing the way vehicles and buildings are soundproofed. The material effectively blocks noise and eliminates unwanted vibrations. Butyl is a synthetic rubber with exceptional damping properties. Its elastic structure absorbs sound waves and transforms them into heat.
Modern butyl mats have replaced older bituminous solutions. The new materials do not crack or crumble when exposed to temperature. The self-adhesive layer facilitates installation without heating. The aluminum coating further enhances the insulating effect.
Applications of butyl mats include automotive, construction and industry. In cars, they reduce noise from the engine, wheels and underbody components. Campers gain a quieter interior while traveling. Residential and office buildings achieve better acoustic comfort.
The mechanism of action is based on the conversion of sound energy. Waves reaching the surface of the mat are absorbed by the butyl. The energy is then converted into a small amount of heat, which dissipates into the material. This process effectively eliminates resonances and vibrations of various frequencies.
What are butyl mats and how they affect noise reduction

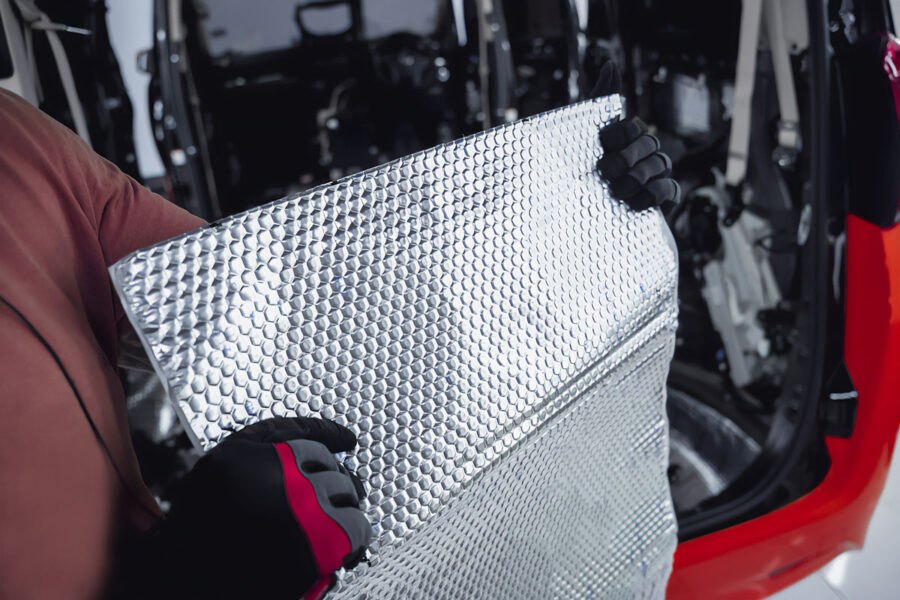

Butyl mats are advanced insulation materials made of synthetic rubber. They consist of a layer of high-density butyl and an aluminum coating. The combination of these elements creates an effective barrier against noise and vibration.
Structure and properties of butyl mats
The structure of a butyl mat consists of several key layers. The base is a butyl mass with increased density, which is responsible for sound attenuation. A 100-micron thick aluminum layer provides thermal insulation. The self-adhesive coating allows easy installation on a variety of surfaces.
The flexibility of the material allows it to fit complex shapes. The mat does not need to be heated during application, making installation much easier. Temperature resistance from -50°C to 175°C guarantees stable performance in extreme conditions. The material is non-toxic and has safety certificates.
Butyl is characterized by high resistance to water, oils and chemicals. It does not mold or degrade when exposed to moisture. These properties ensure the long-term effectiveness of sound insulation.
Noise reduction mechanism
The process of sound attenuation by butyl mats is based on the absorption of acoustic energy. Sound waves reaching the surface of the mat are absorbed by the elastic structure of butyl. The acoustic energy is transformed into heat, which then dissipates into the material.
The mat increases the density of the surface to which it is applied. The greater mass more effectively blocks the penetration of sounds of different frequencies. It works especially well for low tones, which challenge traditional insulation materials.
The aluminum layer further enhances the damping effect. It reflects some of the sound waves, creating an additional acoustic barrier. The combination of absorption and reflection provides comprehensive noise protection.
Interesting fact: Butyl mats can reduce the noise level in the car cabin by up to 15 decibels, which significantly improves driving comfort and conversation quality.
Mechanism of action of butyl mats in suppressing vibrations
Vibrations are mechanical vibrations that travel through structures and generate unwanted noise. Butyl mats effectively eliminate these phenomena through a special damping mechanism. The elastic structure of the material absorbs vibration energy and prevents its propagation.
Absorption of vibration energy
Butyl acts as a shock absorber that absorbs the mechanical energy of vibrations. When vibrations reach the mat-covered surface, the flexible material deforms and absorbs some of the energy. This process converts the mechanical energy into heat, which dissipates into the structure of the mat.
Butyl density plays a key role in damping effectiveness. Higher material mass means better absorption of vibrational energy. Higher-density mats are more effective at eliminating vibrations of various frequencies. An aluminum layer further stiffens the structure and improves damping performance.
The flexibility of the mat allows it to fit irregular surfaces. Thorough adhesion increases the effectiveness of vibration damping. Any gap can reduce the effectiveness of the insulation, so proper installation is key.
Elimination of resonances
Resonances are phenomena that amplify vibrations and generate unwanted noise. They occur when the frequency of vibration matches the natural frequency of the structure. Butyl mats effectively eliminate these phenomena by changing the dynamic properties of the surface.
Applying the mat increases the weight and stiffness of the structure. This alters the natural frequency of the component, moving it outside the range of problematic vibrations. In addition, butyl dampens the amplitude of vibrations, which reduces the intensity of resonances.
List of major sources of vibration in vehicles:
- Engine operation and drivetrain
- Tire contact with the road surface
- Suspension components and steering system
- Ventilation and air conditioning systems
- Body vibration while driving
Eliminating vibrations significantly improves the quality of audio systems. Unwanted vibrations interfere with sound reproduction and cause distortion. Butyl mats create a stable base for speakers and eliminate cabinet resonances.
Vibration reduction also affects the clarity of phone calls. Microphones in vehicles record voice better when they are not disturbed by structural vibrations. Hands-free systems work more effectively in a muted environment.
Interesting fact: Tests have shown that butyl’s sound attenuation effectiveness is 72% higher than that of asphalt materials at 40°C.
ABM butyl mats in the ABM Insulation store
The Insulation ABM store offers a wide range of professional butyl mats for soundproofing vehicles and buildings. The products are characterized by high quality workmanship and noise suppression efficiency. Each mat has quality certificates and is safe for health.
ABM Professional butyl mats
The ABM Professional series is a basic line of butyl mats with proven effectiveness. The products are available in various thicknesses from 1.5 mm to 4.0 mm. Each mat has the thickest layer of aluminum, 0.1 mm thick, which provides excellent thermal and acoustic insulation.
ABM Professional mats feature a wide operating temperature range from -40°C to 170°C. The flexible structure allows easy molding without loss of damping properties. The self-adhesive layer requires no additional adhesive or heating during installation.
Available formats include sheets and rolls of various sizes. Sheets make it easy to fit precisely into small areas. Rolls work well for larger soundproofing projects. All products are non-toxic and safety certified.
Butyl Soundproofing Mats ABM Professional in the ABM Insulation store
ABM Xtreme butyl mats
The ABM Xtreme line represents the highest quality butyl mats available. These products are designed for the most demanding applications. The increased density of butyl provides even better noise and vibration damping performance.
ABM Xtreme mats are distinguished by their exceptional resistance to extreme conditions. They retain elasticity and damping properties even with prolonged exposure to high temperatures. The special composition of the material guarantees the stability of the parameters throughout the service life.
Main applications of ABM Xtreme mats:
- Professional soundproofing of sports cars
- Acoustic insulation of industrial machinery
- Soundproofing of ventilation systems
- Noise reduction in commercial vehicles
- Insulation of recording studios
Butyl Soundproofing Mats ABM Xtreme in the ABM Insulation store
Installation accessories
Professional installation of butyl mats requires the right tools and accessories. ABM’s Insulation Shop offers a complete set of products to aid installation. Pressure rollers ensure that the mat adheres evenly to the surface.
Various types of rollers are available to suit the specific job. Plastic rollers work well for small areas. Metal rollers with one eye make it easier to work in hard-to-reach areas. All tools are characterized by high durability and ergonomic use.
Degreasers and cleaners prepare the surface for installation. Proper cleaning increases mat adhesion and insulation effectiveness. Additional accessories include cutting knives and templates to facilitate precise material fitting.
Accessories in the ABM Insulation store
Application of butyl mats in cars and RVs
Automotive is the main field of application for butyl mats. These materials effectively reduce noise from various sources in the vehicle. The engine, exhaust system, tires and chassis components generate unwanted sounds, which butyl mats effectively eliminate.
Soundproofing of passenger cars
In passenger cars, butyl mats are most often applied to the doors, floor and hood. The doors are an area particularly susceptible to the penetration of outside noise. Applying the mat to the inside of the sheet metal significantly improves the sound insulation of the cabin.
The floor of the car transmits vibrations from the chassis and drivetrain. A butyl mat applied to the floor sheet eliminates these vibrations and reduces road noise. The hood requires special attention due to high temperatures and intense vibration.
The trunk is another area requiring soundproofing. A butyl mat applied to the trunk lid and walls eliminates rumble and improves the sound quality of audio systems. The wheel arches require partial matting to reduce tire noise.
Sound insulation for campers
Campers require a comprehensive approach to soundproofing due to the nature of their use. Long trips and overnight stays in the vehicle require maximum acoustic comfort. Butyl matting effectively reduces engine, wind and mechanical component noise.
The floor of an RV is a key area requiring insulation. Butyl matting eliminates vibrations from the undercarriage and improves the thermal comfort of the interior. The walls and roof require partial covering to reduce exterior noise.
Areas requiring special attention in RVs:
- The engine compartment and the partition between the cabin and living area
- The floor in the living area
- Wheel arches and areas around the wheels
- The roof in areas exposed to rain impacts
- Entrance doors and windows
Properly executed soundproofing brings numerous benefits to vehicle users. Noise reduction reduces fatigue during long trips. A quieter cabin allows people to hold conversations without raising their voices. Audio systems work better in a soundproofed environment.
Sound insulation also improves the value of the vehicle. A soundproofed car is more comfortable and attractive to potential buyers. Vibration reduction can also extend the life of some interior components.
Soundproofing an RV significantly improves the quality of leisure. A quieter interior promotes relaxation and better sleep. Reducing exterior noise increases privacy and comfort in the vehicle.
Interesting fact: Properly installed butyl mats in an RV can reduce interior noise by 30-40%, which significantly improves comfort during overnight stays and rest.
Comparison of the effectiveness of butyl mats with other soundproofing methods
The insulation materials market offers various solutions for soundproofing vehicles and buildings. Butyl mats compete with acoustic foams, mineral wool and bituminous materials. Each solution has its own advantages and limitations for specific applications.
Butyl mats versus bituminous materials
Traditional bitumen mats were the first materials used for soundproofing cars. However, they have significant disadvantages compared to modern butyl mats. Bitumen hardens at low temperatures and can crack during use. It also requires heating during installation.
Butyl mats remain flexible over a wide temperature range. They do not require heating and are easier to install. Sound attenuation efficiency is significantly higher, especially at high temperatures. Butyl is also safer for users’ health.
The durability of butyl mats is superior to bituminous materials. After five years of use, butyl retains 98% of its initial plasticity. Bitumen can crumble and lose its damping properties. Water can get under cracked bitumen mats, causing corrosion.
Comparison with acoustic foams
Acoustic foams specialize in sound absorption, while butyl mats dampen vibrations. The two materials work in different ways and often complement each other. Foams absorb high-frequency sounds better. Butyl mats are more effective at eliminating low tones and vibrations.
Foams are lighter than butyl mats, but have limited resistance to moisture. Butyl is completely waterproof and does not degrade. Foams require protection from direct contact with water. Installation of foams can be more complicated due to the need for adhesives.
A table comparing the effectiveness of different materials:
| Material | Vibration damping | Sound absorption | Resistance to moisture | Ease of installation |
|---|---|---|---|---|
| Butyl mat | Very high | High | Very high | Very easy |
| Acoustic foam | Low | Very high | Medium | Medium |
| Mineral wool | Low | High | Low | Difficult |
| Bituminous mat | Medium | Medium | Medium | Difficult |
Mineral wool in sound insulation
Mineral wool is widely used in construction as an insulation material. It has good sound absorption, but has limited use in automotive applications. It requires protection from moisture and can be difficult to install in vehicles.
The sound absorption coefficient of mineral wool is high for medium and high frequencies. However, it does not effectively dampen vibrations and low tones. When combined with butyl mats, it can form an effective sound insulation system.
Mineral wool is much cheaper than butyl mats, but requires additional protective layers. Installation is more complicated and time-consuming. Dust and moisture can settle in the automotive environment, reducing the effectiveness of the insulation.
Interesting fact: The combination of butyl mat and rubber foam can increase the effectiveness of soundproofing by an additional 20-30% compared to using only one material.
Step-by-step installation of butyl mats for maximum efficiency
Proper installation of butyl mats is key to achieving optimal soundproofing results. The process requires proper surface preparation, precise cutting of the material and accurate pressing. Each step affects the final effectiveness of soundproofing.
Surface and tool preparation
The first step is to thoroughly clean the surface to be soundproofed. All dirt, grease and adhesive residue should be removed. Degreaser or extraction gasoline will effectively prepare the surface. A clean sheet provides better adhesion of the mat.
Removing interior components makes it easier to access areas that need soundproofing. Seats, floor mats and door sides should be carefully removed. Plastic pullers protect delicate components from damage. Documenting the disassembly process makes later installation easier.
Necessary tools include a pressure roller, cutter and templates. A metal roller with one eye works well in hard-to-reach areas. A sharp knife allows precise cutting of the mat. Paper templates make it easy to adjust the shape of the material.
Application and pressing technique
The butyl mat should be applied gradually with careful pressing of each piece. Starting from the center and moving toward the edges eliminates air bubbles. The pressure roller should be guided with adequate pressure, but without excessive force.
The ambient temperature affects the flexibility of the mat. In cold conditions, the material may be stiffer and require gentle heating. A tinder set to a low temperature makes it easier to form the mat. Overheating can damage the structure of the material.
Order of installation of butyl mats:
- Cleaning and degreasing the surface
- Preparation of templates and cutting out mats
- Applying the mat from the center towards the edges
- Thoroughly roll out the entire surface
- Checking adhesion and removing bubbles
- Installation of additional insulation layers
Optimization of surface coverage
Effective soundproofing does not require covering 100% of the surface with butyl matting. Strategic placement of the material at key points can be just as effective. Areas with the highest vibrations require full coverage. Other sections can be partially covered.
Car doors require covering about 30-50% of the interior surface. The matting should be placed in the central part of the sheet where the greatest vibrations occur. The edges and corners can be left uncovered without significant loss of effectiveness.
The vehicle floor requires full coverage in areas exposed to vibration from the chassis. The gimbal tunnel and areas around suspension mounting points are particularly important. Other sections can be covered with strips of matting at intervals of 20-30 cm.
Quality control of the installation
Once the installation is complete, check the adhesion of the mat at various points. A well-applied mat should not peel off when gently pulled. Air bubbles can be removed by puncturing and pressing again. The edges of the mat should be pressed carefully.
A sound test allows you to assess the effectiveness of soundproofing. A comparison of the noise level before and after installation shows the effectiveness of the insulation. Vibration can be checked by touching the surface while the engine is running. A properly soundproofed surface should be stable.
Interesting fact: Thorough pressing of the mat with a roller can increase the effectiveness of damping by 15-20% compared to superficial application without pressing tools.
Summary
Butyl mats are the most effective solution for soundproofing vehicles and buildings. Their flexible structure effectively absorbs vibrations and dampens noise over a wide frequency spectrum. The mechanism of action is based on the conversion of sound energy into heat, which eliminates unwanted sounds at the source.
The advantage of butyl mats over traditional materials is significant. They do not require heating during installation, remain flexible at extreme temperatures and are safe for use. Durability and weather resistance guarantee long-term insulation performance.
Automotive applications bring tangible benefits to users. Noise reduction of 15 decibels significantly improves driving comfort and the quality of audio systems. Campers gain a quieter interior conducive to relaxation. Proper installation with the right tools maximizes the effectiveness of soundproofing.
An investment in high-quality butyl mats pays for itself through increased comfort and vehicle value. ABM Professional and ABM Xtreme materials represent the highest quality standards in the soundproofing industry. Professional installation guarantees optimal performance for years of use.
Sources:
- https://pmc.ncbi.nlm.nih.gov/articles/PMC10934450/
- https://www.nature.com/articles/s41598-024-55823-x
- https://pmc.ncbi.nlm.nih.gov/articles/PMC8070469/
- https://www.sciencedirect.com/science/article/abs/pii/S0032386122007728
- https://www.internationaljournalssrg.org/IJME/2025/Volume12-Issue2/IJME-V12I2P102.pdf
