The noise produced by a car engine is one of the main factors reducing driving comfort. Noise from the engine compartment penetrates the interior of the vehicle, causing fatigue, distracting the driver and making it difficult for passengers to talk to each other. Soundproofing the engine hood reduces unwanted noise and improves the acoustics of the cabin.
Effective soundproofing of the engine compartment has many advantages. It reduces noise by up to 5-8 decibels, improves the sound of the audio system and helps the driver to concentrate while driving. The lower sound level has a positive impact on safety, as a less tired driver reacts more quickly and precisely to traffic situations.
Butyl mats are among the most commonly used materials for soundproofing the engine hood. They are characterized by resistance to high and low temperatures, flexibility for easy installation, and very good vibration damping. The installation of butyl mats does not require specialized tools or advanced knowledge, so it can be done by yourself.
A carefully installed engine hood soundproofing provides a lasting effect, increasing the comfort of use of the vehicle and improving acoustics during everyday driving. Such an investment not only affects the quality of travel, but also promotes concentration and safety on the road.
Diagnosis of the noise problem in the engine compartment
Identifying the source of the noise under the hood is the first step in an effective soundproofing process. Metallic clanking, humming, rattling or humming noises can indicate various technical problems that need to be identified before using soundproofing mats. A correct diagnosis will determine whether mechanical intervention is necessary or whether the use of soundproofing materials will suffice.
Types of sounds and their causes
The nature of the sounds from the engine compartment provides many valuable clues. A metallic knocking can indicate problems with hydraulic tappets or bearings. A rhythmic “clack clack” sound that increases in speed with the engine speed often indicates a faulty valve. A constant hum with a single frequency can be caused by auxiliary components such as the alternator or power steering pump.
Vibrations transmitted to the body often accompany disturbing noises. Their intensity varies depending on the engine speed and load. Strong vibrations felt when the engine is running but the vehicle is stationary usually indicate problems with the power unit mountings or uneven cylinder operation.
Aerodynamic noises caused by airflow in the engine compartment also increase the overall noise level. They are caused by turbulence of air flowing around engine components or entering through leaks in the intake system.
Tip: A simple test can be used to diagnose the source of the noise: hold a long screwdriver against the suspected component and hold the other end to your ear to act as a stethoscope. This method does not require any special equipment and allows you to pinpoint the exact location of the noise.
Diagnostic methods
Professional diagnosis of acoustic problems requires a structured approach. The first step is to listen to the engine at different speeds, both cold and at operating temperature. Temperature-dependent changes in sound can indicate problems with valves or lubrication.
The next step is to determine the location of the noise source. Workshops use electronic stethoscopes or piezoelectric accelerometers, which pinpoint the exact location of the sound. At home, you can use a cardboard tube or a flexible garden hose as a makeshift tool.
Vibration measurements complement acoustic diagnostics. Excessive vibrations indicate wear or malfunctioning components. Important measuring points include:
- Engine mounts
- Shock absorber mounts
- Attachment points for accessories
- Exhaust system parts
The analysis of sound frequencies provides information about characteristic problems. Frequencies that are multiples of the crankshaft speed can indicate faults in the crank-piston system.
Distinguishing between mechanical and acoustic noises
It is important to distinguish between noises caused by mechanical defects and noises that can be eliminated by soundproofing. Noises caused by mechanical defects have a sharp, metallic sound, the intensity of which varies with different engine loads.
Noises that are effectively dampened by butyl mats are usually hums, buzzes or low-frequency vibrations. They are caused by the resonance of the car body, stimulated by the operation of the power unit. A characteristic feature of such noises is their even distribution throughout the engine compartment.
A correct noise analysis allows the identification of areas that require soundproofing. Butyl mats effectively dampen sounds transmitted through the body parts, especially through the engine hood, which acts as a membrane amplifying vibrations.
The importance of operating conditions in diagnosis
Noise diagnosis should take into account the vehicle’s operating conditions. Some noises only occur when driving on rough roads or at certain speeds. Therefore, tests in different driving situations are necessary, both at low and high engine speeds.
Observing the vehicle in motion allows you to accurately assess when and under what conditions unwanted noises occur. Only a full analysis, covering different operating scenarios, gives you the opportunity to correctly recognize the problem and effectively fix it.
Benefits of engine hood soundproofing for engine life
Soundproofing the engine hood improves acoustic comfort and also affects the durability and efficiency of the power unit. Carefully installed butyl mats create an effective thermal barrier, stabilizing the temperature in the engine compartment. If the conditions are right, the engine reaches its operating temperature faster, which reduces fuel consumption and harmful emissions during start-up. Thermal insulation also slows down the engine’s cooling process after driving, which is particularly important on cold days.
A stable operating temperature means less thermal stress on individual engine parts. Aluminum, cast iron and plastic components differ in their thermal expansion. Sudden temperature changes cause uneven expansion and contraction, which accelerates mechanical wear. Hood insulation reduces these changes, extending the life of important components.
Protection against extreme temperatures
Butyl mats effectively protect the engine from adverse weather conditions. On hot days, the insulating layer protects the engine compartment from excessive heating by the sun. This allows for stable operation of electronic systems that do not tolerate high temperatures well.
During frost, the insulation slows down the cooling of the engine, which is crucial for the durability of the power unit. Cold starting is very demanding for the engine because the oil is more viscous, which makes lubrication difficult. Keeping the chamber warm for a longer period of time reduces the number of cold starts, limiting mechanical wear.
Tip: When installing butyl mats on the hood, it is advisable to apply a layer of aluminum foil on the engine side, which reflects heat and improves insulation.
Protection against extreme temperatures is particularly important for plastic components. Cables, connectors and component housings lose their strength when exposed to high temperatures. Stable thermal conditions in the chamber extend their service life.
Soundproofing the bonnet also reduces the risk of overheating when driving in difficult conditions, such as long uphill climbs or when towing a trailer. Butyl mats reduce the flow of heat from the outside, which facilitates the work of the cooling system and allows for more efficient removal of excess heat generated by the engine.
Reduction of vibrations and their impact on the durability of components
Vibrations generated by the engine are transferred to the car body, causing microcracks and accelerating wear of mechanical connections. Butyl mats dampen vibrations, reducing dynamic loads acting on the engine mounts and body joints.
The reduction of vibrations reaching the hood limits the stress in the drive unit. When the engine operates in a more stable environment, it causes less wear to bearings, bushings and other load-bearing components. This results in a longer service life of the drive system and fewer failures caused by vibrations.
The reduction in vibrations also has a positive effect on the engine’s accessories, including:
- Alternator and starter
- Power steering and air conditioning pump
- Sensors and wiring harnesses
- Intake and exhaust systems
- Fuel system components
Vibration reduction minimizes the risk of electrical connections coming loose, which prevents engine problems caused by circuit interruptions. Stable conditions promote the longer efficiency of sensors that are responsible for controlling operating parameters.
The soundproofing of the bonnet also reduces mechanical resonance, which occurs when the vibration frequency of the engine coincides with the natural frequency of the bodywork components. Resonance leads to an increase in the amplitude of the vibrations, which accelerates the wear of mountings and bolted connections.
Protection against dirt and moisture
Butyl mats form a barrier that protects the engine compartment from dust and moisture. Restricting the access of contaminants reduces component wear and improves air filtration efficiency.
An insulating layer on the inside of the bonnet prevents condensation from forming during rapid temperature changes. Less moisture in the chamber slows down corrosion of metal parts and extends the durability of electrical connections. This protection is especially important when using the vehicle in high humidity conditions.
Moisture protection is very important for electronic engine control systems. Modules, sensors and electrical connections are susceptible to water, which causes corrosion and short circuits. A stable environment inside the chamber reduces the failure rate of electronic systems and ensures predictable engine operation.
Butyl mats also protect against organic contaminants such as leaves or seeds that can accumulate in hard-to-reach places. Their decomposition promotes the formation of substances that accelerate corrosion. Blocking the access of such particles extends the engine’s service life and reduces the costs of corrosion repairs.
A properly installed soundproofing hood with butyl mats is an effective solution that improves acoustic comfort and has a positive effect on the durability of the engine. Investing in high-quality insulation materials results in fewer breakdowns, lower fuel consumption and longer, trouble-free operation.
Thickness selection and comparison of ABM Professional and ABM Xtreme butyl mats
Choosing the right butyl mat for engine hood soundproofing requires an analysis of key parameters. The thickness of the material is important for effective sound and vibration damping. Mats with thicknesses ranging from 1.3 mm to 4 mm are available on the market. Thinner models are better suited for irregularly shaped surfaces, while thicker ones offer higher sound and heat insulation. When choosing the thickness, the distance between the bonnet and the engine components should be taken into account to avoid problems with closing the lid and to ensure proper ventilation.
The technical parameters and intended use of the ABM Professional and ABM Xtreme mats differ. The Professional series is the basic variant offering good insulation properties, while Xtreme is a line with increased effectiveness in noise reduction and thermal insulation. Both types are characterized by high flexibility and ease of installation, but differ in their internal structure and the thickness of the aluminum layer.
Technical parameters of butyl mats

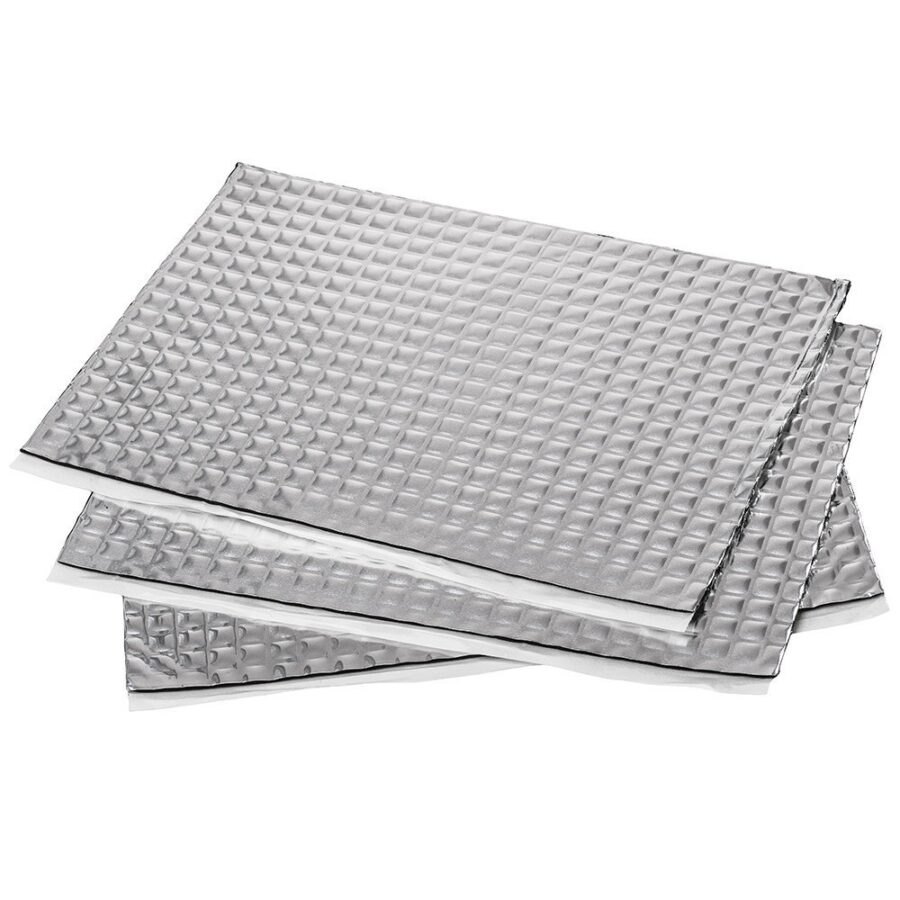

ABM Professional mats are available in sheets and rolls with a surface area of 0.5 to 2 m². The standard thickness is 2 mm, which is a compromise between effectiveness and flexibility. The 0.1 mm thick aluminum layer reflects heat well and increases stiffness. The operating temperature range of -40°C to 170°C ensures stability in various conditions.
ABM Xtreme mats have an improved internal structure, which improves sound and vibration damping. They are available in similar sizes as Professional, but provide better insulation at the same thickness. The 0.1 mm aluminum layer adheres more strongly to the butyl thanks to a special technology, which increases the durability of the material.
Tip: When choosing the thickness of the soundproofing mat, measure the distance between the hood and the highest point of the engine. Subtract at least 10 mm from the result to avoid contact between the mat and hot parts.
Density affects the effectiveness of the damping. Mats with a higher density are better at eliminating low-frequency sounds, which are typical of the engine. ABM Professional has a density of 1.8-2.0 g/cm³, while Xtreme has 2.2-2.4 g/cm³, which increases the effectiveness of damping.
The internal structure determines the flexibility and adaptation to the surface. ABM Professional has a uniform butyl structure, while Xtreme uses a layered technology that increases the vibration absorption capacity and facilitates installation on difficult surfaces, such as the inside of the bonnet.
Comparison of the properties of ABM Professional and ABM Xtreme mats
| Parameter | ABM Professional | ABM Xtreme |
|---|---|---|
| Material thickness | 1,3-3 mm | 2-4 mm |
| Thickness of the aluminum layer | 0,1 mm | 0,1 mm |
| Density | 1,8-2,0 g/cm³ | 2,2-2,4 g/cm³ |
| Operating temperature range | -40°C do 170°C | -40°C do 170°C |
| Noise reduction | Very good | Excellent |
| Thermal insulation | Good | Very good |
| Flexibility | High | Very high |
| Moisture resistance | Yes | Yes |
| Mildew resistance | Yes | Yes |
Noise reduction is a key parameter. ABM Professional mats reduce noise by 3-5 dB, which is sufficient for typical use. The Xtreme series achieves 5-8 dB, working well for higher demands or noisy engines.
Both types of mats work in a temperature range from -40°C to 170°C, which protects against the effects of engine heat. However, keep a safe distance from the hottest components.
The butyl adhesive used in ABM Professional ensures good adhesion to metal and plastic. The Xtreme series uses a stronger adhesive, which increases the durability of the installation even in more difficult conditions. Both series do not require heating during application, which facilitates installation.
Choosing a mat according to your needs and budget
The choice between ABM Professional and Xtreme mats depends on your needs and budget. The Professional series is a solution for standard applications, providing good insulation at an affordable price. Ideal for hood soundproofing in medium-powered passenger vehicles.
ABM Xtreme mats are designed for more demanding applications, such as:
- Muffling the hood in high-powered cars
- Vehicles with diesel engines that generate strong vibrations
- Sports cars requiring high noise reduction
- Commercial vehicles operating in difficult conditions
The thickness depends on the vehicle model. For small engine compartments, 1.3-2 mm mats are recommended. For older models with more ground clearance, thicker mats (3-4 mm) can be used for better insulation.
The surface area of the hood determines the amount of material needed. A standard passenger car hood requires 1-1.5 m² of mat. When purchasing, it is best to include a margin for cutting errors or additional elements that can be soundproofed, such as wheel arch covers or engine compartment elements.
Cost efficiency is important. ABM Professional mats offer good value for money and satisfactory results at a lower cost. The Xtreme series, despite its higher price, provides better insulation performance, which can be cost-effective in high-noise vehicles or to achieve the highest acoustic comfort.
The right choice of mat and mat thickness depends on the vehicle model, the desired level of soundproofing and the budget. ABM Professional and Xtreme mats provide very good insulation, differing in terms of noise reduction efficiency and price. A properly selected butyl mat is a long-term investment in acoustic comfort throughout the vehicle’s service life.
Preparing the bonnet surface for application
Proper preparation of the bonnet surface is the basis for effective soundproofing. Even high-quality butyl mats will not fulfill their insulating function if they are applied to an unprepared surface. The preparation process consists of several steps that determine the durability and effectiveness of the soundproofing. Thorough cleaning, degreasing and ensuring the right temperature conditions guarantee that the material will adhere properly to the hood.
Cleaning and removing impurities
The first step is to thoroughly clean the inside of the hood. The best results are achieved by a two-step process, starting with the removal of loose dirt. The inside of the hood is often covered with a layer of dust and dirt, which weakens the adhesion of the glue.
Start by vacuuming the surface with a narrow nozzle to reach difficult areas. Pay special attention to recesses, ribs and joints where dirt tends to accumulate.
After vacuuming, wash the mask with warm water and a detergent, e.g. washing-up liquid. Use a soft sponge or microfiber cloth to remove the dirt without damaging the surface. It is important to wash the entire mask thoroughly, especially the areas soiled with oil or grease.
After cleaning, rinse the entire mask thoroughly with clean water to remove any detergent residue. Then dry the entire mask to prevent moisture from getting trapped under the butyl rubber mat. You can speed up the drying process by using clean, dry cloths or compressed air.
Tip: Before cleaning, remove all components attached to the inside of the hood, such as factory insulation, washer lines or lighting. This will make it easier to access every corner and thoroughly clean the surface.
Degreasing the surface
After removing the mechanical dirt, it is necessary to degrease the bonnet. This step is essential for the adhesion of butyl mats. Even a thin layer of grease invisible to the eye can weaken the bond between the adhesive and the sheet metal.
For degreasing, use agents that effectively remove greasy impurities without leaving any residue. The following work well:
- Technical acetone
- Extraction naphtha
- Isopropyl alcohol
- Silicone removers
- Technical solvents
Apply the degreaser to a clean, dry cloth and then wipe the entire surface of the hood. It is important to change the cloth or the clean part of the cloth frequently, avoiding the spreading of grease. Focus on areas that have come into contact with oil, such as around hinges or mountings.
After degreasing, do not touch the bonnet with your bare hands, as the skin leaves grease. If necessary, wear clean nitrile or latex gloves.
Degreasing should be carried out in a well-ventilated room, following the manufacturer’s instructions. Most degreasers are flammable, so avoid sources of fire and ensure adequate air flow.
Control of temperature and application conditions
The right conditions for applying butyl mats affect their adhesion and durability. The air and bonnet surface temperature should be between 15 and 25°C. Too low a temperature weakens the adhesive, while too high a temperature can lead to excessive softening of the adhesive layer.
It is worth checking the temperature of the hood before application. If the vehicle has been standing outside in the cold, wait until the hood has reached room temperature. It is also possible to gently heat the sheet metal with a heat gun set to low power, taking care not to overheat the surface.
Air humidity also affects the quality of the installation. The optimal value is 40-60%. Too high humidity promotes condensation, which reduces adhesion. Too dry air can cause the accumulation of static electricity, which attracts dust.
The application should be carried out in a closed, clean room with a stable temperature and no dust. The floor should be thoroughly swept or vacuumed before work to reduce the risk of contamination.
The inspection of the conditions also includes an assessment of the condition of the hood. The surface should be dry, free of corrosion and peeling paint. Rusty areas should be cleaned and protected with a suitable anti-corrosion agent. This will ensure a permanent bond between the mat and the sheet metal and stop corrosion from developing under the insulation.
The preparation of the surface of the hood for the application of butyl mats requires precision. Carefully performed cleaning, degreasing and appropriate installation conditions guarantee durable and effective soundproofing. The time spent on this will pay off in the form of strong adhesion of the mats and long-lasting protection against noise and vibration.
Cutting and fitting techniques for butyl mats
The precise cutting and fitting of butyl mats is a key stage in the process of soundproofing the engine hood. Carefully prepared insulation material affects not only the aesthetics of the workmanship, but above all the effectiveness of noise reduction. ABM butyl mats from the Professional and Xtreme series have a specific structure that requires the use of appropriate tools and processing methods. Properly cut and fitted material ensures maximum sound and vibration damping and maintenance of engine compartment functionality.
Tools for precise cutting
Choosing the right tools is crucial for the quality of butyl mats. The aluminum outer layer of ABM mats quickly blunts ordinary blades, so appropriate equipment should be used. Knives with hardened blades that stay sharp during heavy use produce the best results.
Scissors with reinforced blades are also suitable for cutting, especially for long, straight lines. For complex shapes, an upholstery knife provides greater precision. For working comfort, it is worth using a knife with replaceable blades, which allows for quick replacement of a dull blade without interrupting the cut.
Butyl rubber and aluminum can form sharp edges after cutting. To avoid injury, it is necessary to wear protective gloves. Cut-resistant technical gloves are best suited for protecting hands and ensuring dexterity.
Tip: Before cutting, the butyl rubber sheet should be heated to approx. 20°C for at least 12 hours. The heated material is more flexible, making it easier to cut and shape the mask.
To create complex shapes, thick paper or cardboard templates are useful. They allow you to transfer exact dimensions to the mat, minimizing the risk of errors and material waste.
Techniques for adjusting the mask to its shape
Appropriate techniques are required to adapt the butyl mat to the irregular surface of the bonnet. The bonnet has ribs, reinforcements and technological openings that make it difficult to install the insulation. Effective shaping starts from the center of the bonnet and gradually moves towards the edges.
When adjusting to curved surfaces, the incision technique is useful. It consists of making short incisions on the edge of the mat, which increases flexibility and allows for precise adjustment. The incisions are made perpendicular to the edge, at intervals of 2-3 cm, depending on the degree of curvature.
To ensure effective soundproofing, the entire inner side of the hood must be covered with the mat, avoiding the installation points of the components. When fitting the mat, special attention should be paid to:
- Careful reproduction of ribs and reinforcements
- Maintaining free zones around the mounting holes
- Precise cutting out of spaces for accessories
- Fitting at edges and folds
- Continuity of the insulation layer
Heat molding is helpful for difficult shapes. Gently heating the mat with a low-power heat gun increases its plasticity, which facilitates installation. However, be careful not to overheat the material, which could damage it.
Joining pieces of mats
When soundproofing a car bonnet, it is often necessary to join several pieces of butyl mats. The effectiveness of the insulation depends on the care taken when joining the mats. The best effect is achieved by using the overlap technique, i.e. overlapping the edges of adjacent pieces.
The overlap should be at least 1-2 cm to ensure a tight connection and prevent noise from passing through. The joints should be pressed down firmly and rolled out to ensure a uniform insulation structure.
Each piece of mat must be rolled out carefully to ensure a long-lasting soundproofing effect. The process involves pressing the mat firmly against the surface of the bonnet with a roller to remove air bubbles and ensure a perfect fit. The texture on the aluminum layer indicates that the mat has been pressed down properly.
When joining the pieces of the mat, it is effective to gradually remove the protective paper. It consists in partially peeling off the paper and sticking the next pieces of the mat, which facilitates precise fitting to the surface and prevents the formation of folds and air bubbles.
Precise cutting and fitting of butyl mats requires patience and accuracy, but the results in the form of noise and vibration reduction make the effort worthwhile. With the right tools and techniques, you can achieve a professional soundproofing effect on the engine hood, which significantly reduces the noise level inside the vehicle.
Procedure for removing components before applying mats
The correct removal of components attached to the inside of the bonnet is an important stage of soundproofing work. Carefully removing the factory-fitted soundproofing and other components allows free access to the entire surface, which affects the quality and durability of the insulation. The dismantling process requires a systematic approach and knowledge of the bonnet design in a given vehicle model. Careful execution of this stage avoids damage to the mountings and facilitates their reassembly after completion of the work.
Removal of factory-fitted soundproofing
The first step in preparing the bonnet for the application of butyl mats is to remove the original soundproofing. The factory-fitted insulation materials are usually attached with plastic clips or latches, which must be carefully disconnected. Depending on the vehicle model, there can be between 4 and 8 fasteners distributed over the entire surface of the bonnet.
It is best to start removing the clips from the center of the bonnet and gradually move towards the edges. This method allows for even detachment of the material from the metal sheet, minimizing the risk of damage. It is best to use an upholstery removal tool or a screwdriver wrapped in a soft cloth to detach the clips so as not to scratch the paint.
It is worth keeping the factory soundproofing in one piece, as it can be used as a template for cutting out a new butyl mat. Some original components, if in good condition, can be reused as an additional insulating layer.
After dismantling, check that all clips and fasteners have been removed. Leftover fragments can make it difficult to apply the mats and impair the aesthetics of the installation. Residual adhesive from factory soundproofing must be removed with suitable chemical preparations that will not damage the paint.
Dismantling of accessories and additional elements
There are often components on the inside of the hood that need to be removed before installing butyl mats. These components include
- Windshield washer lines
- Lighting components (if any)
- Mounting brackets and handles
- Sensors and electronic components
- Blanking plugs and protective covers
Wiper cables should be removed carefully as the hard plastic can easily break. It is best to disconnect the cables from the wiper nozzles and gently remove them from the guides. It is advisable to mark the cables to facilitate their subsequent installation.
Tip: Before dismantling sensors or control modules, it is a good idea to take photos of their location and how they are connected. Photographs from different perspectives will facilitate subsequent installation.
Lighting elements mounted on the inside of the hood should be removed with extreme caution when disconnecting the cables. Before disconnecting the electrical system, disconnect the battery to avoid short circuits. Bulbs and optical elements should be protected with a soft material to prevent damage.
Brackets and handles often require torx or Allen keys. When unscrewing, it is worth paying attention to the order of the elements. It is best to store screws and other fixings in labeled containers to avoid confusion during assembly.
Securing dismantled components
After removing all components from the inside of the hood, it is necessary to properly secure them for the duration of the soundproofing work. Proper storage prevents damage and facilitates assembly after the application of butyl mats.
Plastic clips and covers are best placed in closed containers that protect them from dust and accidental damage. It may also be useful to group the components according to the installation site.
Sensors and electronic modules should be protected from moisture and dirt. It is best to place them in a zip-lock bag and then wrap them in a soft material to protect them from impact.
It is a good idea to roll up electrical cables and harnesses into loose loops and secure them with cable ties, but without squeezing them too tightly so as not to damage the insulation. Cables protected in this way will not kink or break.
The original soundproofing, if intended for reuse, should be stored flat, avoiding bending. This arrangement will preserve its shape and properties. It is best to lay it on a clean, smooth surface, covering it with a film or material that will protect it from dust.
Carefully dismantling the components before installing the butyl mats is the basis for effective soundproofing of the hood. Thorough removal and protection of the components facilitates further work, ensures a better end result and allows for trouble-free assembly of the hood after installation. The time spent on this step translates into higher quality of soundproofing and no complications when reassembling.
Installation of mats with regard to engine ventilation
Correct installation of butyl mats on the engine hood requires special attention to the ventilation of the engine compartment. Efficient air circulation plays a key role in maintaining the optimal operating temperature of the power unit. Improperly installed soundproofing materials can disrupt airflow, leading to engine overheating and dangerous failures. Striking a balance between effective noise dampening and proper ventilation is the basis of professional butyl mat installation.
Identifying ventilation zones
Before installing butyl mats, it is necessary to identify the key ventilation zones in the engine hood. Each vehicle model has a characteristic arrangement of holes and ducts that ensure proper airflow. These holes can be divided according to their role and importance for the cooling system.
The main air vents, usually located in the center of the hood, are responsible for supplying air to the radiator and intercooler in turbocharged engines. They should be left fully exposed, and butyl mats should be applied at a suitable distance so as not to restrict airflow.
Secondary ventilation ducts, which are less visible, help to dissipate heat from the engine compartment. These are located at the edges or at the rear of the bonnet and also require attention. Blocking them can disrupt the thermal balance of the power unit.
Tip: Before applying butyl mats, it is a good idea to take photos of the inside of the bonnet with the ventilation zones marked. This template will make it easier to plan the layout of the mats, helping to maintain the necessary spacing.
Technological openings, although not designed for ventilation, can also help dissipate heat. This is especially true for older vehicles where the cooling system works less efficiently. In such cases, it is worth considering leaving some of the holes uncovered, especially in high-powered vehicles.
Installation techniques that maintain airflow
To ensure that ventilation is not impaired, butyl mats should be installed using appropriate techniques. It is crucial to maintain the correct distances from the ventilation openings and to arrange the mats in such a way that they do not impede air flow.
The zonal application technique involves dividing the surface of the bonnet into zones with different coverings. Areas far from the ventilation ducts can be covered with a full layer of mats, while the thickness should be reduced or soundproofing should be completely abandoned near key openings. It is worth using thinner material or leaving a space directly next to the main openings.
An alternative is the island method, which involves sticking mats in separate sections. Leaving gaps between the “islands” allows air to circulate freely. This solution works especially well in high-powered vehicles or those used in difficult conditions, such as towing or driving in the mountains.
When installing the ventilation mats, the following rules should be observed:
- Maintain a distance of at least 2-3 cm from the edges of the main channels.
- Use thinner mats in transition zones.
- Avoid multiple layers near the ventilation openings.
- Check the channels regularly during the work.
- After each section, perform a trial closing of the hood.
The use of paper or cardboard templates facilitates precise placement of the mats, ensuring that all key ventilation points are exposed.
Verification of ventilation efficiency after installation
After the installation of butyl mats is complete, it is necessary to verify the operation of the ventilation system. This inspection helps to avoid problems during the use of the vehicle and to make corrections if necessary.
The first step is a thorough inspection of all ventilation openings to make sure that no part of the mat is blocking the airflow. Smaller channels that could be accidentally covered during application should also be checked.
The functional test requires starting the engine and observing its operation at different speeds. First, let the engine idle for 15-20 minutes to assess the operating temperature at rest. Then, it is worth taking a test drive, covering different speeds and road conditions.
During the test, the engine temperature indicator should be monitored. Any deviations from the norm may indicate ventilation problems. If problems are suspected, it is necessary to check the mat placement and, if necessary, partially remove or correct them.
Long-term observation of the engine after installing the mats should include various situations, including driving in high temperatures, uphill and with heavy loads. A full assessment of the impact of soundproofing on the cooling system requires the vehicle to be checked under various conditions.
The correct installation of butyl mats, taking into account the ventilation of the engine, ensures effective noise reduction while maintaining efficient cooling of the power unit. Carefully planned insulation placement and cooling system function control guarantee the safety and comfort of the vehicle after soundproofing.
Protection of mats against high temperatures
The engine compartment is a place exposed to extreme conditions, where the temperature during intensive operation of the power unit can exceed 120°C. Effective protection of butyl mats against high temperatures is important for maintaining their insulating properties and durability of soundproofing. ABM mats, although resistant to high temperatures, require additional protective measures when installed near hot components. Proper thermal protection extends the service life of soundproofing materials and prevents damage caused by overheating.
Identification of high thermal risk zones
Before applying butyl mats, the areas of the engine compartment that generate the most heat should be identified. A careful analysis of the temperature distribution allows for the selection of appropriate protection in areas particularly vulnerable to overheating. These zones differ depending on the design and type of engine.
The exhaust manifold is one of the hottest components in the engine compartment, reaching over 150°C during intensive operation. The area around it requires special care when placing butyl mats. A distance of at least 10-15 cm must be maintained or thermal barriers must be used.
The turbocharger in supercharged engines generates temperatures exceeding 200°C. Standard butyl mats cannot be used in its immediate vicinity without additional protection. It is necessary to use materials with increased temperature resistance.
Tip: Before installing butyl mats, it is worth conducting a temperature test of the engine compartment. After intensive driving, with caution (e.g. heat-resistant gloves), you can measure the temperature of the components with a laser thermometer. This allows you to precisely determine the areas that require thermal protection.
The catalytic converter and other exhaust components also emit significant amounts of heat. Depending on the vehicle design, their proximity to the hood must be taken into account when planning the layout of the mats.
Thermal protection methods
There are several effective methods of protecting butyl mats from high temperatures. The choice of the right technique depends on the specifics of the vehicle and the level of heat generated.
The use of aluminum foil is the basic form of protection. ABM mats have an aluminum layer, but in particularly hot areas it is worth adding an additional layer of foil with a thickness of at least 100 microns. Aluminum effectively reflects heat, limiting the heating of the soundproofing material.
The spacing technique involves leaving a space between the heat source and the mat. A distance of 5-10 cm acts as natural insulation, significantly reducing the amount of heat transferred.
The use of special thermal mats with increased temperature resistance is the best solution for areas exposed to the greatest overheating. ABM Xtreme mats, resistant up to 170°C, are ideal for use near hot parts. In extremely hot areas, the following can also be used:
- Ceramic fiber mats (up to 1200°C)
- Screens with a ceramic coating
- Fiberglass insulation with aluminum foil
- Thermal tapes based on fiberglass
- Heat-reflecting coatings
Layered technology is a combination of different materials that form a complex thermal barrier. For example: a highly resistant thermal mat, an air layer and a standard butyl mat. This solution effectively protects against overheating while providing good sound insulation.
Inspection and maintenance of thermal protection
Thermal protection requires regular inspection to maintain its effectiveness. Inspections allow for the detection of damage and the prevention of permanent deformation of the soundproofing material.
The first inspection should take place approximately 500 km after installation. The condition of the mats in areas exposed to high temperatures should be checked for signs of overheating, such as discoloration of the aluminum, deformation or loss of adhesion.
Regular checks should be carried out every 6 months or after each change in the exhaust system. Pay attention to the continuity of the aluminum layer, which is responsible for heat reflection. Damage to the foil should be repaired immediately by applying a new layer of appropriate thickness.
The adhesive of the butyl mats can weaken when exposed to high temperatures for a long period of time. If you notice that the mats are starting to come loose, you can strengthen the attachment with special heat-resistant adhesives or heat-resistant aluminum tape.
Maintenance of thermal protection also includes cleaning the surface of the mats. Accumulated dust reduces the effectiveness of heat reflection. Regular wiping of the mat with a dry, soft cloth helps to maintain its insulating properties.
Proper protection of butyl mats against high temperatures is an essential element of effective soundproofing of the bonnet. Applying the right protection methods ensures long-lasting insulation effectiveness and prevents damage resulting from difficult conditions in the engine compartment. Investing in proven thermal solutions translates into durability of soundproofing and stable acoustic protection throughout the vehicle’s service life.
Long-term benefits of professional soundproofing
Professional soundproofing of the engine hood with butyl mats brings a number of long-term effects that go beyond the immediate improvement of acoustic comfort. The investment in high-quality insulation materials and careful application pays off throughout the vehicle’s lifetime. Comprehensive soundproofing not only affects driving comfort, but also the value of the car, its durability and operational safety. These effects become particularly visible after years, when vehicles without proper insulation begin to show signs of accelerated wear and tear.
Paint protection and hood deformation prevention
One of the key long-term benefits is the protection of the bonnet paint from the negative effects of high temperatures. The engine bonnet is subject to cyclical temperature changes, which cause stress in the material structure. Without insulation, heating and cooling of the sheet metal can lead to microcracks in the paint, resulting in flaking and peeling.
ABM butyl mats form an effective thermal barrier, stabilizing the temperature of the bonnet and limiting thermal fluctuations. The paint coating is less exposed to thermal stress, which significantly extends its durability and aesthetic appearance. This is particularly important in vehicles with aluminum hoods, which have a higher thermal expansion than steel components.
High temperatures can also cause permanent deformation of the hood. This problem mainly affects older vehicles or vehicles that are used intensively. Professional soundproofing with ABM butyl mats reduces the heating of the sheet metal, thus reducing the risk of deformation. This allows the bonnet to retain its original shape, which has a positive effect on the appearance of the vehicle and its market value.
Tip: For maximum paint protection, it is advisable to check the condition of the butyl mats periodically, especially after intensive use in harsh conditions. Check that the mats are not peeling off the bonnet and that the aluminum layer is not showing signs of damage. Early detection of the problem can prevent more serious consequences.
ABM butyl mats also provide effective protection against dirt and moisture. They adhere tightly to the inside of the hood, forming a barrier against water, mud and other contaminants. The protected surface stays clean, which facilitates maintenance and prevents corrosion.
Improved acoustic comfort and driver concentration
The long-term effects of professional soundproofing include a significant improvement in acoustic comfort inside the vehicle. Effective reduction of noise from the engine compartment improves the well-being of the driver and passengers during longer journeys. Less acoustic fatigue allows for better concentration, which increases road safety.
Studies confirm that long-term exposure to noise above 70 dB increases stress levels and impairs cognitive abilities. Soundproofing the bonnet with ABM mats reduces noise in the cabin by 3-8 dB, depending on the car model and the material used. This difference is noticeable and clearly affects travel comfort.
The reduction of low frequencies, which are the most tiring, is particularly important. ABM mats effectively dampen vibrations in the 50-200 Hz range, which are characteristic of engine operation. Limiting these sounds increases driver concentration and improves safety, especially when driving for many hours.
The quietness inside the vehicle also improves the quality of conversations between passengers. The lower background noise level allows for free communication without the need to raise one’s voice. This is important during family trips or business meetings when conversation plays an important role.
Noise reduction also improves the sound quality of the audio system. Less background noise allows you to hear the nuances of the music better, which increases the listening pleasure. This is especially beneficial for high-end sound systems, whose capabilities are only fully utilized in a well-insulated interior.
Increase in vehicle value and operating savings
Professional soundproofing of the hood increases the vehicle’s resale value. Buyers pay attention to acoustic comfort, treating it as an important element of vehicle quality. A car with professionally made insulation is perceived as better maintained and more comfortable to use.
Professional soundproofing also reduces operating costs. Stabilizing the temperature in the engine compartment reduces fuel consumption during cold starts. Faster reaching of the optimal engine operating temperature shortens the time of intensive fuel combustion, characteristic of the warm-up phase.
The operational benefits also include:
- Lower wear and tear of the cooling system
- Longer battery life thanks to stable thermal conditions
- Less frequent failure of on-board electronics sensitive to extreme temperatures
- Slower aging of electrical cables and connectors
- Lower engine oil consumption due to stable operating temperature
Long-term savings also include a reduction in the number of faults caused by vibrations. Soundproofing the bonnet with ABM mats reduces the transmission of vibrations to the bodywork, which reduces wear and tear on mountings, hinges and other components exposed to stress.
An additional aspect is the increase in fire safety. ABM mats act as a fire-resistant barrier that delays the spread of fire in the event of an engine compartment fire. This is an important, though often underestimated, element that increases vehicle safety.
Professional soundproofing of the engine hood with ABM mats is an investment that pays off throughout the car’s lifetime. Better acoustic comfort, paint protection, improved safety and savings in vehicle maintenance are effects that matter to both the user and future owners. A carefully made soundproofing, based on high-quality materials, raises the standard of the vehicle and affects its market value.
Summary
Professional soundproofing of the engine hood with butyl mats is a comprehensive solution that significantly increases the comfort of vehicle operation.
Careful diagnosis of noise sources, proper selection of materials and precise execution of each stage of the process guarantee effective soundproofing. ABM butyl mats from the Professional and Xtreme series offer high sound insulation parameters while remaining resistant to demanding conditions in the engine compartment.
The basis for effective soundproofing is the proper preparation of the bonnet surface, the precise cutting and fitting of the mats and their installation while maintaining proper engine ventilation. It is also crucial to protect the insulation materials from high temperatures, which allows them to maintain their properties for a long time.
The effects of professional soundproofing go beyond noise reduction. They include paint protection, prevention of hood deformation, improved driver concentration and increased vehicle market value. Stabilizing the temperature in the engine compartment has a positive effect on the durability of the power unit and accessories.
Investing in high-quality insulation materials and their professional application translates into real benefits throughout the vehicle’s lifetime. Professional soundproofing ensures greater comfort, reduces the need for repairs and lowers service costs.
